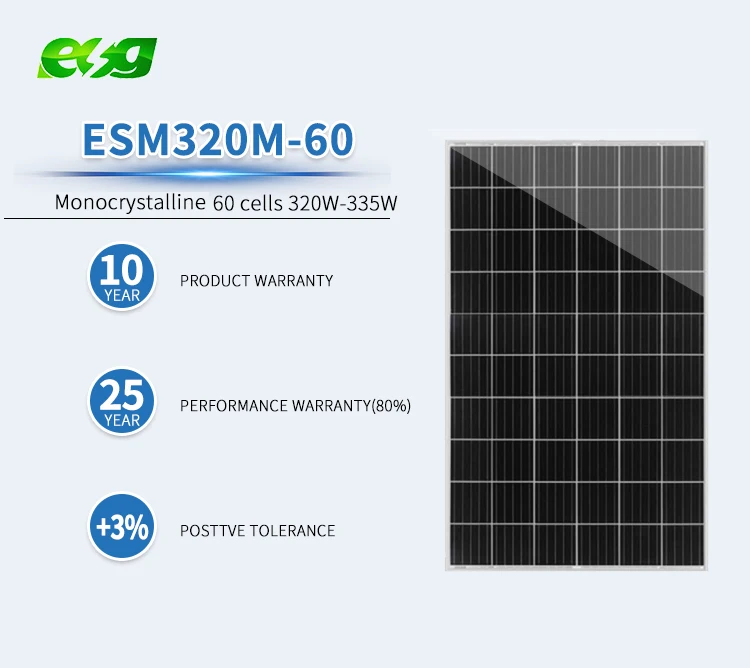

320 Watts 325watt 1000w Mini 5v Trina 330w 50 Kw 335w Mono Half Cell Caravan 36v Vpanel Solar Energy Panel for Guangdong, China

ESG maintains stringent norms of quality to manufacture 320 Watts 325watt 1000w Mini 5v Trina 330w 50 Kw 335w Mono Half Cell Caravan 36v Vpanel Solar Energy Panel. We offer buyer 320 Watts 325watt 1000w Mini 5v Trina 330w 50 Kw 335w Mono Half Cell Caravan 36v Vpanel Solar Energy Panel that they need at prices that fit their pocket. In the future,ESG will continue to introduce outstanding talents and learn advanced technology, win the initiative in market competition, and clear road obstacles to achieve the goal of becoming a world-class enterprise.

Why Choose Us？

Products Description

Model	ES320W	ESG325W	ESG330W	ESG335W
Peak Power Watts(Pmax/W)	320W	325W	330W	335W
Tolerance (%)	0~+3%
Open Circuit Voltage(Voc) [V]	40.9	41.1	41.3	41.5
Short Circuit Current(Isc) [A]	10.15	10.20	10.31	10.36
Maximum Power Voltage (V)	33.4	33.6	33.8	34.0
Maximum Power Current (A)	9.59	9.68	9.77	34.0
Maximum system voltage (V)	1000V
Operating Temperature(℃)	-40 -- +85 ℃

Physical Specification：

Dimension:1665*1002*35MM

Weight:18.2KG/PCS

Packing: Each box capacity: 31 pcs

Product Feature

● Bypass diode minimizes the power drop by shade.

● The conversion efficiency of solar cell is above 21%.

● White tempered glass,EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.

● Waterproof Perfect for grid applications.

● Product guarantee 10 years.

Quality Assurance

●Electrical Insulation test
●Outdoor exposure test
●Hot-spot endurance test
●UV-exposure
●Thermal cycling test
●Humidity freeze test
●Damp heat Test

Electric Performance Typical Performance Characteristics		ES320W
Short Circuit Current Temperature Coefficient %/℃	0.048
Open Circuit Voltage Temperature Coefficient %/℃	-0.290
Maximum Power Temperature Coefficient %/℃	-0.370
Performance Warranty: 90%output:12 years; 80%output:25 years

GLASS
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

TEVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Junction Box, Cable and MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability

More Related Products:

Our Factory

Certifications

Our Exhibition

Our Team

Packing & Transport

Our Project：

100MW floating PV plant in Weishan, Jining

100kW commercial rooftop PV plant in Japan

40MW floating PV plant in Panji, Anhui

FAQ

Q1:What’s A grade wholesale price payment terms?
A1:We accepted almost all payment terms,like T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2：reached 100PCS，we also can pintingyour LOGO on solar panel carton.
Q3: Warranty process.
A3: We can provide 1 ~ 8 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have stock.
